      1. Current location: Home > Products > Lab standard fermenters

        fermenter|bioreactor(50L-10000L-CGMP)

        Product date:2016-07-22

        Description:

        fermenter|bioreactor (GMP )5L 50L 500L 150L fermenter|bioreactor (GMP)100 liters fermenter|bioreactor(GMP)150L 1500L fermenters|bioeractors (GMP)1000 lit Automatic fermenter|bioreactor BLBIO-1000SJA Fully flexible stainless steel platform for pilot and production scale The SIP ferment

        Detailed

         fermenter|bioreactor (GMP )

        5L 50L 500L 150L fermenter|bioreactor (GMP)

        100 liters fermenter|bioreactor(GMP)

        150L 1500L fermenters|bioeractors (GMP)

        1000 lit  Automatic  fermenter|bioreactor    BLBIO-1000SJA

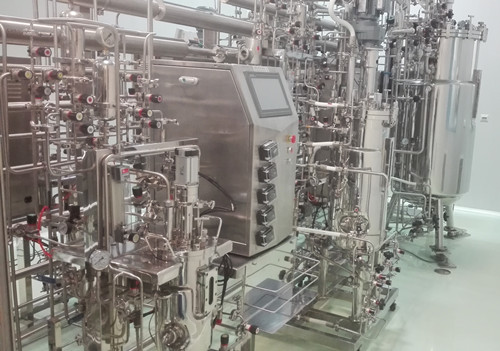

        Fully flexible stainless steel platform for pilot and production scale

        The SIP fermentor generation the Blbio-S/C , designed for meeting demanding requirements in process development and production.
        Automated Sterilization in Place (SIP)
        Automated Cleaning In Place (CIP)
        Space saving design   and   to save time
        Full qualification support

        1000L total volume
        Working volume
        : 700 liters
        Material: 316L stainless steel with material contact to the other 304 stainless steel
        Sterilization methodManual situ sterilization(
        Optional automatic sterilization procedures)
        Control
        system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected to the computer through the USB interface, the data

        Working volume 500 to 700 liters and The main material of the fermenter is made by 316Lstainless steel. The design pressure: P(inside)= 0.3Mpa, P(interlayer)= 0.3Mpa, The polishing precision: Ra0.4~0.6, the ratio between diameter and height: 1:2.2

        Stirring system
        Mechanical sealing system at the top of the fermenter; high-powered stirring oar, antifoam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 70~500rpm±1%,The height of the stirring oar can be adjusted, too.

        Temperature detection and control
        Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), autocontrol (cooling water+5℃)~65℃±0.1℃,temperature probe(US)

        pH detection and control
        2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor (Mettler, Switzerland) and shielding lead (Mettler, Switzerland). fermenter is autocontrolled with peristaltic pump

        DO detection and control
        0-150±3% displaying precision 0.1%, sensor (Mettler, Switzerland) and shielding lead(Mettler, Switzerland)

        Feed control
        fermenter uses peristaltic pump (Longer) to add meterials

        Antifoam control
        Tested by sencor and added antifoamer by peristaltic pump

        Intake control (air) :manual control rotameter

        pressure detection and control
        Pressure Control: Pressure meter and digital display and digital remote control, pressure control

        we are compliant fermentation equipment for research, development, pilot and production applications. Our Factory in China. We provide the fermentor products including : Stainless steel  fermenter, Pilot combo stainless steel fermentor, glass fermentor,  fermenter, Multi-Union fermenter,Multi-stage fermentation tank,and shaking Incubators ,  Positive join stainless steel fermentor.
